Rugged high performance systems for use in harsh environments. Unique cooling systems makes it possible to use processors with very high performance. The chassis is fully sealed for protection against dust and corrisive elements. The rugged design gives protection against shock and vibration.
| Aqeri 94100 | Aqeri 91022 | Aqeri 91200 | |
|---|---|---|---|
| View description | View description | View description | |
| Type | All-in-one Computer | Computer | Server |
| Processor | 4th generation Intel Core i7 Quad Core CPU | 6th gen Intel Core i7-6820EQ 3.5Ghz, 8Mb cache | 2x Intel® Xeon® Processor E5-2618L v2 (15M Cache, 2.00 GHz) |
| Memory | DDR3 up to 16Gb | DDR4 up to 64Gb | Up to 512Gb ECC DDR3 1866Mhz |
| Storage | 1x SSD SLC Wide Temp 128Gb | 1-2 2,5” SSD | 2x 2,5” SSD RAID1 |
| Monitor | 10” 1024x768 | N/A | N/A |
| Keyboard | QWERTY with integrated mouse | N/A | N/A |
| Interfaces | |||
| Aqeri 94100 | Aqeri 91022 | Aqeri 91200 | |
| USB | x3 USBF TV21G | x4 AMC | x6 20WC98PN |
| Gigabit Ethernet | x2 RJF TV21G | x2 (Fiber as option) AMC | x2 20WB35PN |
| VGA | x1 38999 | x1 AMC | - |
| Audio HD, MIC IN, AUDIO OUT | x1 38999 | - | - |
| RS232/RS422/RS485 | x6 38999 | - | - |
| Log | x1 RJF TV21G | - | - |
| RS232 | - | x1 AMC | - |
| Gigabit Ethernet Fiber | - | - | x2 LCF TV 20GN |
| DVI-D | - | - | x1 20WE26PN |
| Electrical Specifications | |||
| Aqeri 94100 | Aqeri 91022 | Aqeri 91200 | |
| Power requirements | 28VDC (18-36VDC) | 9-36 VDC | 28VDC (18-36VDC) |
| Power consumption | 35W at 28VDC | Max 70W at 28VDC (excluding heaters) | 100W@ 28VDC (excluding heaters) |
| Environmental Characteristics | |||
| Aqeri 94100 | Aqeri 91022 | Aqeri 91200 | |
| Temperature | -20°C to +55°C | Operating -32°C to +55°C | Operating -20°C to +55°C |
| Humdity | 507.5 Proc II | 5% to 95% non condensing | 5% to 95% non condensing |
| Altitude Operating | N/A | N/A | 3000m |
| Vibration | N/A | Operating 5-500Hz 2,18g rms | Operating 5-500Hz 4,5g rms |
| Shock | N/A | Operating 40g, 11ms, ½ sine wave | Operating 40g, 11ms, saw tooth |
| Designed to fulfill | European CE MIL-STD-461E MIL-STD-1275D MIL-STD-810G (Other standards on request) | European CE MIL-STD-461E MIL-STD-1275D MIL-STD-810G (other standards on request) | MIL-STD-461E MIL-STD-1275B MIL-STD-810G (other standards on request) |
| Physical Characteristics | |||
| Aqeri 94100 | Aqeri 91022 | Aqeri 91200 | |
| Format | Half 19” 2U) | 19” 2U | |
| Width | 360 mm | 220 mm | 440 mm |
| Height | 278 mm | 88 mm | 88 mm |
| Depth | 150 mm | 280 mm | 450 mm |
| Weight | 10 kg | 4,6 kg | 10 kg |
| Data Sheets | |||
| Aqeri 94100 | Aqeri 91022 | Aqeri 91200 | |
| Download | Download | Download | |

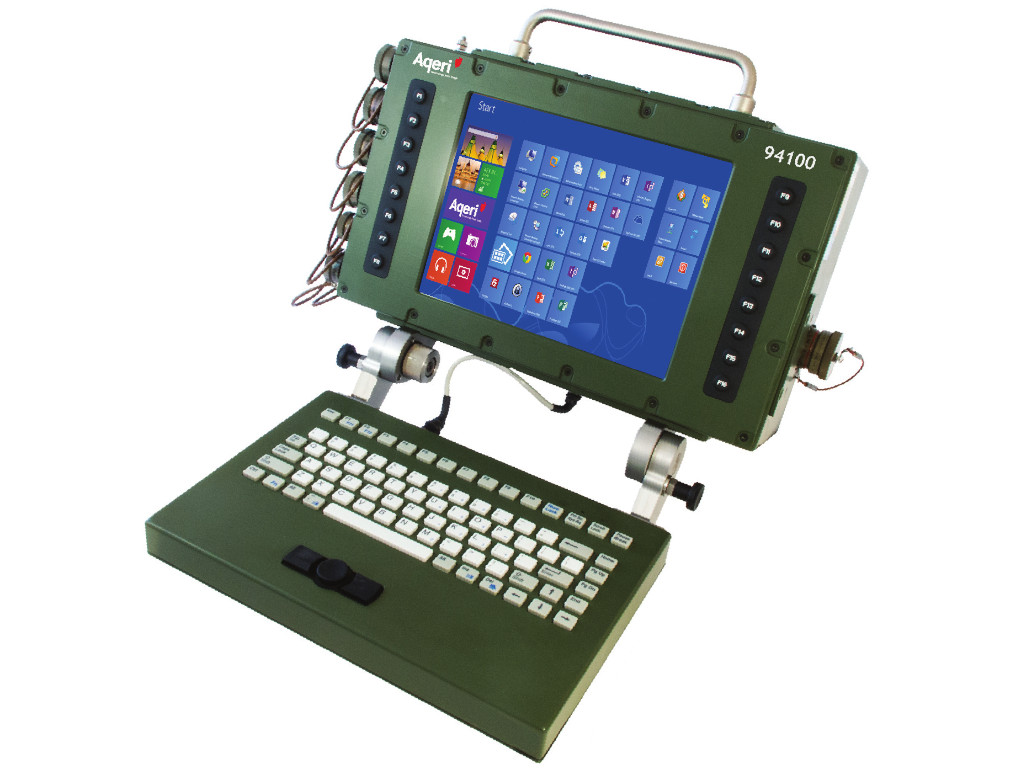

The Aqeri 94100 is a ruggedized military 10” all-in-one computer and display made for use in harsh environments. Attached is a QWERTY keyboard with integrated mouse, 16 user programmable functions buttons, resistive touch display with the possibility to turn off touch function.

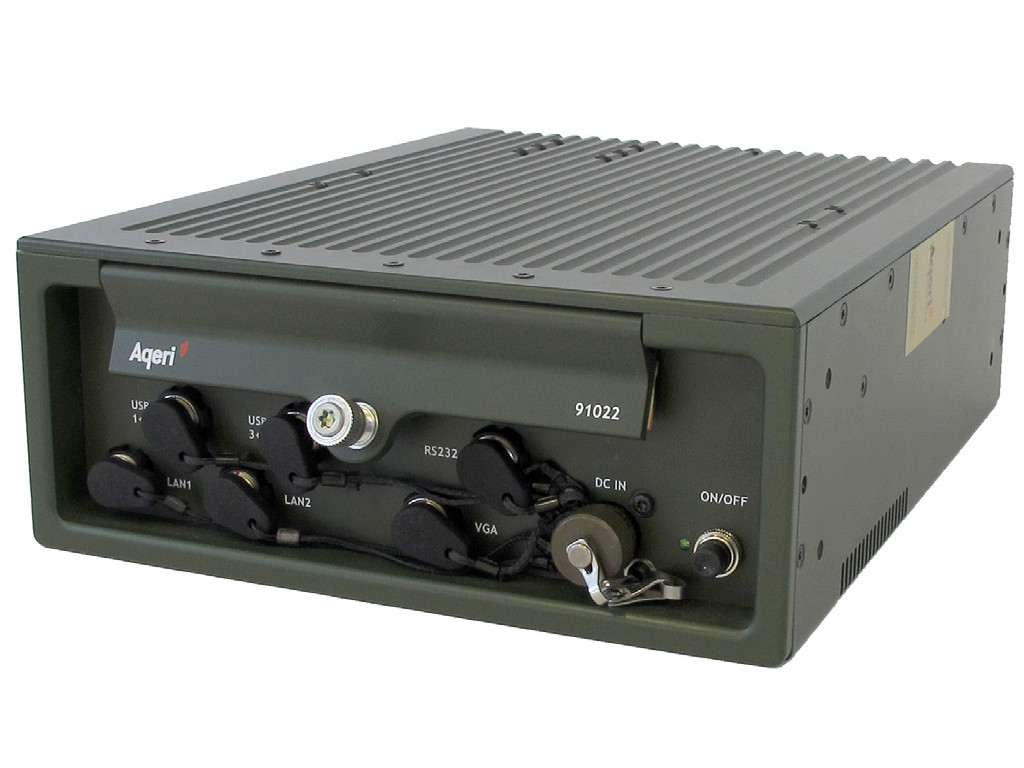

The Aqeri 91022 Mobile Computer is a small form factor product designed to be deployed in areas with the most harsh environments and space critical demands. A typical scenario is deployed vehicles where space and weight is critical. The Aqeri 91022 computer can be mounted stand-alone or as an option in 19” racks.

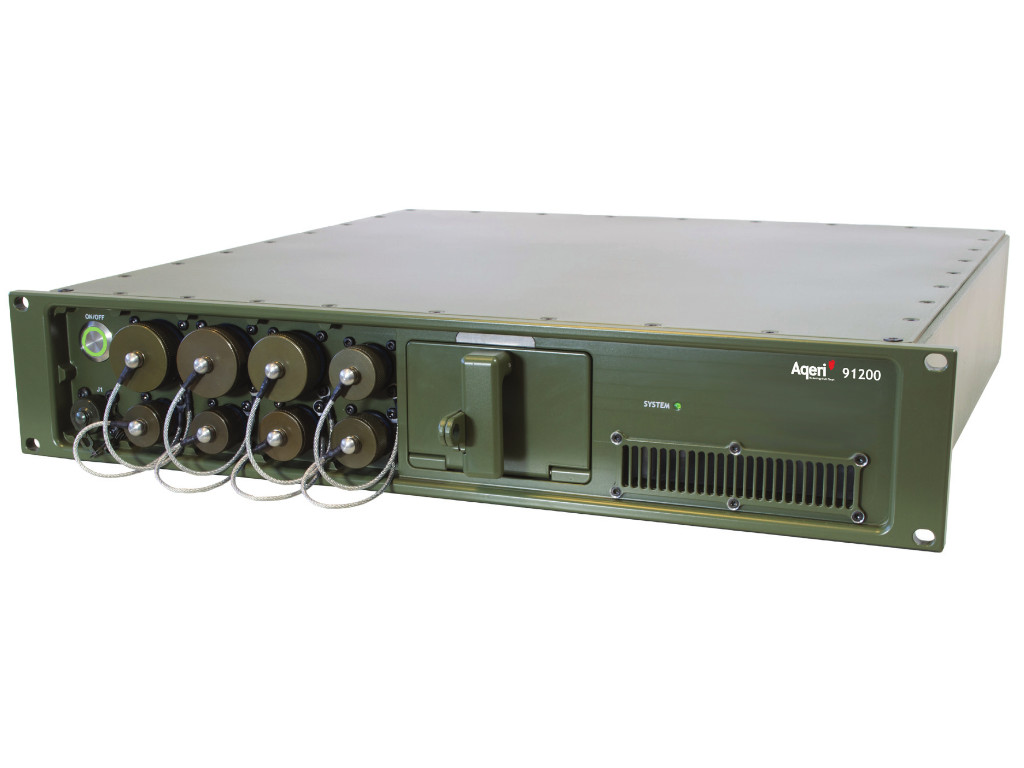

Aqeri 91200 is a 2U rugged high performance server for use in harsh environments. Its’ unique cooling system makes it possible to use dual Xeon processors with very high performance from Intel®.
